How To Enable Photo Viewer on Windows Server 2016 or 2019

READING TIME: 4 MINUTES

I’m in the middle of migrating my Plex media server from my daily driver Windows 10 PC to Server 2019 Standard. I ran out of space (and hard drive bays) inside my desktop, so the time has come to migrate to a different OS. I purchased all the components with the intention of turning my server into a TrueNAS nas server, but after running TrueNAS for a week, I decided the time invested in learning/migrating to an unfamiliar operating system was more than I wanted to tackle at this point in time. I ultimately ended up purchasing a Fractal Design Node 804 case because of how many storage bays it has.

As a sysadmin, I’ve become really proficient with Windows operating systems, Powershell, Hyper-V, PFsense, etc, so I figured moving to a known OS would simplify things for me in the long run. However, I soon learned that there are a few things I wasn’t aware of on Server 2019. In particular, one of the things I learned was that the default “photo viewer” is set to Paint.

Fortunately, this was a quick fix. Follow the steps below if you’ve ran into the same issue.

If you’re curious about my server build, I am using

• (Case) Fractal Design Node 804
• (Harddrives x4) 8TB Seagate Barracuda
• Cooler Master Hyper 212 CPU Fan
• Gigabyte B450M DS3H AM4 motherboard

---

How to Enable Photo Viewer in Windows Server 2019

By default, Photo Viewer isn’t installed or active. The first thing we need to do is check whether or not the DLL’s exist on the server.

---

Step 1: Check if Photo Viewer DLL’s Exist

Browse to C:\Program Files (x86)\Windows Photo Viewer on the server. If you see .dll files there, that means the files exist but aren’t registered. It should look like this:

If you don’t see those files, simply browse to the path above from a Windows 10 PC & copy the folder contents to the same path on your server.

---

Step 2: Register the DLL’s

Now that we know the necessary files are present, we need to register them.

Open Command Prompt (type CMD into Start) and right-click to Run as Administrator. Then copy and paste the following code:

regsvr32 “C:\Program Files (x86)\Windows Photo Viewer\PhotoViewer.dll”

---

Step 3: Download PhotoViewer Registry Keys

Now that the .dll’s are registered, we need to import the registry keys. This allows us to “Open With…” from File Explorer and choose Windows Photo Viewer, as well as set default file associations for various file types, such as .jpg, .jpe, or .jpeg.

Download registry files from here: MS Photoviewer Registry Files.zip

Once downloaded, right-click the .zip file and extract it to a temporary location.

---

Step 4: Import Registry Keys

From Start, open Regedit.

File > Import > browse to the location you extracted the 4 registry files. You will need to import all 4 of them.

You should now be able to right-click an image file and Open With Windows Photo Viewer!

---

Step 5: Set Photo Viewer as Default App

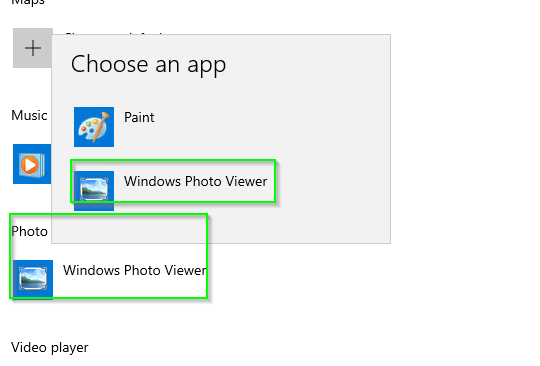

If you’d like to make Photo Viewer your default photo viewing application, search Windows for “Default Apps” and then change Photos to Windows Photo Viewer.

---

Step 6: Allow Images in Thumbnails

This step is optional, but if you’d like to see a preview of the images from File Explorer (instead of just icons), you can do that by changing the File Explorer options.

Search Windows for Folder Options. Change to the View tab and uncheck “Always show icons, never thumbnails”.

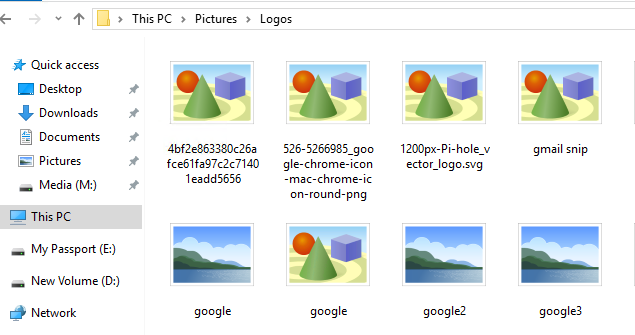

That will change it from looking like this:

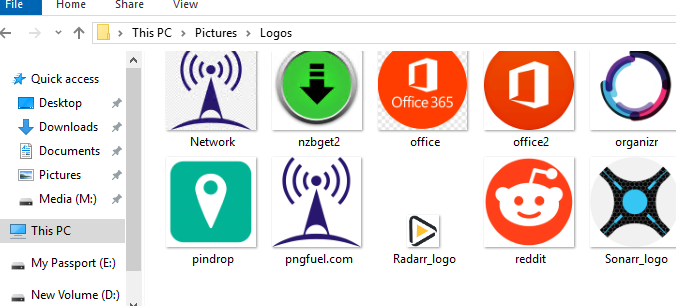

to looking like this:

That’s all there is to it! Hopefully this guide helped you out.

---
